序号
No. |

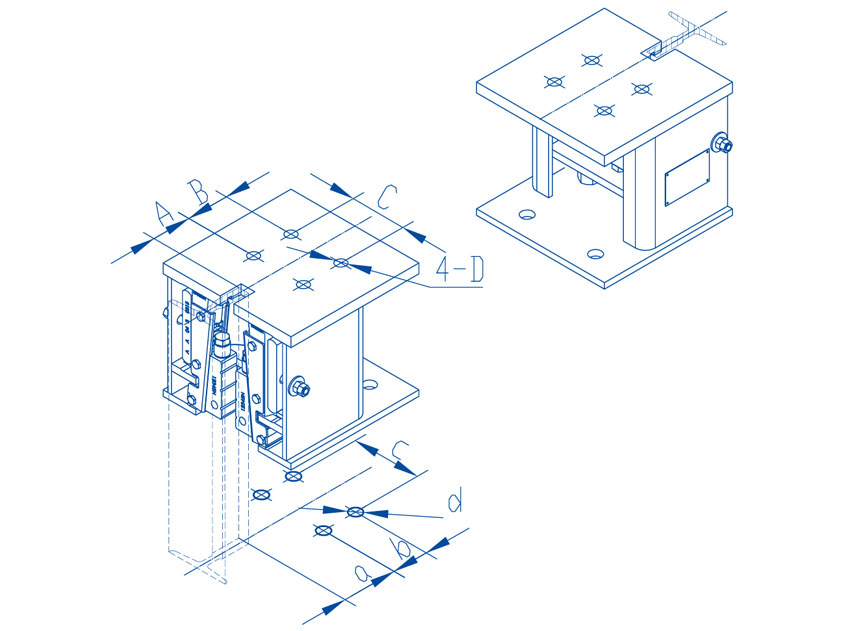

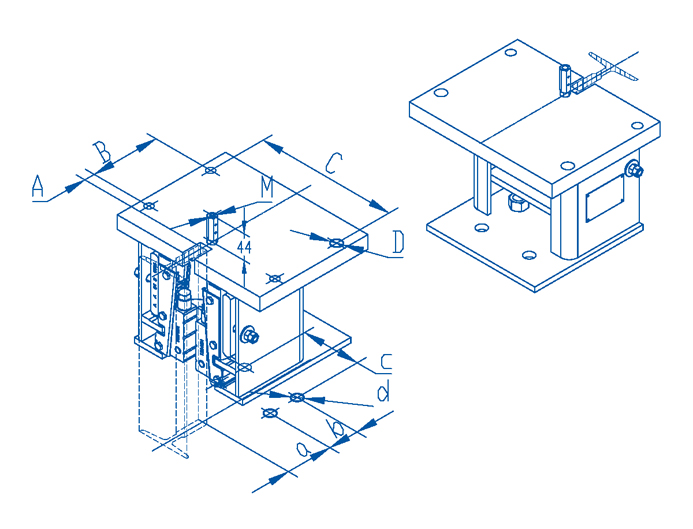

底梁安装接口
Car frame arrangement |
导靴安装接口
Roller guide arrangement |
||||||
|
A
|
B
|
C
|
D
|
a
|
b
|
c
|
d
|
|
|
1(单)
|
12
|
125
|
90
|
2-Φ18/2-M12
|
70
|
65
|
90
|
4-Φ15
|
|
2(单)
|
67.5
|
90
|
110
|
2-Φ18/2-M16
|
57
|
75
|
140
|
4-M16
|
|
1(双)
|
65
|
90
|
220
|
4-M16
|
60
|
/
|
90
|
2-M16
|
|
2(双)
|
65
|
90
|
110
|
4-M16
|
80
|
80
|
100
|
4-M16
|
|
3(双)
|
55
|
60
|
80
|
4-M12
|
60
|
70
|
90
|
2-M16/2-Φ18
|
|
4(双)
|
65
|
90
|
110
|
4-M16
|
60
|
/
|
90
|
2-M16
|
|
技术参数表
Sheet of technical parameter |
||||||||
|
额定速度
Rated speed (m/s) |
0.25-2.5
|
|||||||
|
限速器动作速度
Acting speed of governor(m/s) |
≤3.23
|
|||||||
|
允许质量P+Q
Permitted load (kg) |
1200-6000
|
|||||||
|
适用电梯导轨宽度
Width of applied guide rail (mm) |
10、15.88、16
|
|||||||
|
外形尺寸（长×宽×高）
External dimension (L×W×H) (mm) |
205×205×185
|
|||||||
